Fittings - K,J,2J SeriesSAE FLANGEIn Stock

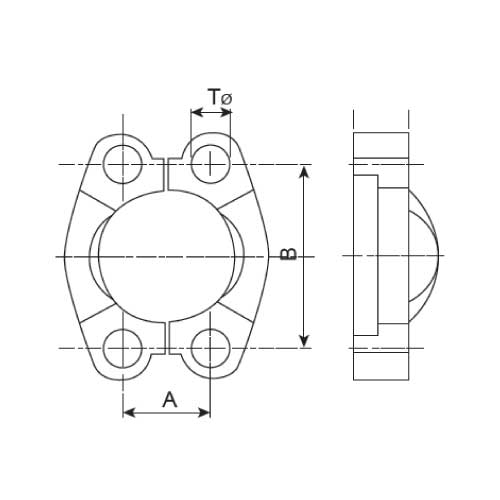

SAE CODE 62 SPLIT FLANGE CLAMPS
6 sizes available · Product code AZ6
Available sizes
| Pirtek Code | Description | Dimensions | ClampDN | ClampInch | ClampSize | Associated Bolt DetailsUNC Bolts - Thread | Associated Bolt DetailsUNC Bolts - Length (Code 62) | Associated Bolt DetailsMetric Bolts - Thread | Associated Bolt DetailsMetric Bolts - Length (Code 62) | Associated Bolt DetailsUNC Bolts - Length (Supercat) | Associated Bolt DetailsMetric Bolts - Length (Supercat) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AZ6-32 | SAE CODE 62 SPLIT FLANGE CLAMPS | 21mm × 44,46mm × 96,82mm | 50 | 32 | 2” | ¾”-10 | 2¾” | M20 x 2.5 | 70 | — | — |
| AZ6-24 | SAE CODE 62 SPLIT FLANGE CLAMPS | 17mm × 36,52mm × 79,38mm | 38 | 24 | 1.1/2” | 5/8”-11 | 2¼” | M16 x 2 | 55 | 2½” | 60 |
| AZ6-20 | SAE CODE 62 SPLIT FLANGE CLAMPS | 15mm × 31,76mm × 66,68mm | 32 | 20 | 1.1/4” | ½”-13 | 1¾” | M12 x 1.75 | 45 | 2" | 50 |
| AZ6-16 | SAE CODE 62 SPLIT FLANGE CLAMPS | 13mm × 27,78mm × 57,15mm | 25 | 16 | 1” | 7/16”-14 | 1¾” | M12 x 1.75 | 45 | 1¾” | 45 |
| AZ6-12 | SAE CODE 62 SPLIT FLANGE CLAMPS | 11mm × 23,82mm × 50,8mm | 20 | 12 | 3/4” | 3/8”-16 | 1½” | M10 x 1.5 | 35 | 1¾” | 45 |
| AZ6-08 | SAE CODE 62 SPLIT FLANGE CLAMPS | 9mm × 18,25mm × 40,49mm | 12 | 8 | 1/2” | 5/16”-18 | 1¼” | M8 x 1.25 | 30 | — | — |
