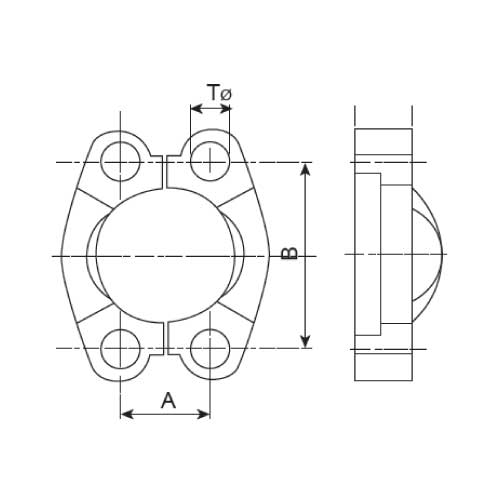

SAE CODE 61 SPLIT FLANGE CLAMPS
10 sizes available · Product code AZ3
Available sizes
| Pirtek Code | Description | Dimensions | ClampDN | ClampInch | ClampSize | Associated Bolt DetailsUNC Bolts - Thread | Associated Bolt DetailsUNC Bolts - Length | Associated Bolt DetailsMetric Bolts - Thread | Associated Bolt DetailsMetric Bolts - Length |
|---|---|---|---|---|---|---|---|---|---|
| AZ3-56 | SAE CODE 61 SPLIT FLANGE CLAMPS | 17mm × 69,8mm × 120,7mm | 90 | 56 | 3.1/2" | 5/8”-11 | 1¾” | M16 x 2 | 50 |
| AZ3-48 | SAE CODE 61 SPLIT FLANGE CLAMPS | 17,5mm × 61,92mm × 106,38mm | 75 | 48 | 3” | 5/8”-11 | 1¾” | M16 x 2 | 50 |
| AZ3-40 | SAE CODE 61 SPLIT FLANGE CLAMPS | 13,5mm × 50,8mm × 88,9mm | 62 | 40 | 2.1/2” | ½”-13 | 1¾” | M12 x 1.75 | 40 |
| AZ3-32 | SAE CODE 61 SPLIT FLANGE CLAMPS | 13,5mm × 42,88mm × 77,77mm | 50 | 32 | 2” | ½”-13 | 1½” | M12 x 1.75 | 35 |
| AZ3-24 | SAE CODE 61 SPLIT FLANGE CLAMPS | 13,5mm × 35,72mm × 69,85mm | 38 | 24 | 1.1/2” | ½”-13 | 1½” | M12 x 1.75 | 35 |
| AZ3-20 | SAE CODE 61 SPLIT FLANGE CLAMPS | 11mm × 30,18mm × 58,72mm | 32 | 20 | 1.1/4” | 7/16”-14 | 1½” | M10 x 1.5 | 30 |
| AZ3-16 | SAE CODE 61 SPLIT FLANGE CLAMPS | 11mm × 26,16mm × 52,37mm | 25 | 16 | 1” | 3/8”-16 | 1¼” | M10 x 1.5 | 30 |
| AZ3-12 | SAE CODE 61 SPLIT FLANGE CLAMPS | 11mm × 22,26mm × 47,63mm | 20 | 12 | 3/4” | 3/8”-16 | 1¼” | M10 x 1.5 | 30 |
| AZ3-10 | SAE CODE 61 SPLIT FLANGE CLAMPS | 11mm × 22,26mm × 47,63mm | 20 | 12 | 5/8” | 5/16”-18 | 1¼” | M8 x 1.25 | 35 |
| AZ3-08 | SAE CODE 61 SPLIT FLANGE CLAMPS | 9mm × 17,48mm × 38,1mm | 12 | 8 | 1/2” | 5/16”-18 | 1¼” | M8 x 1.25 | 25 |
