AdaptorsAdaptor UnionsIn Stock

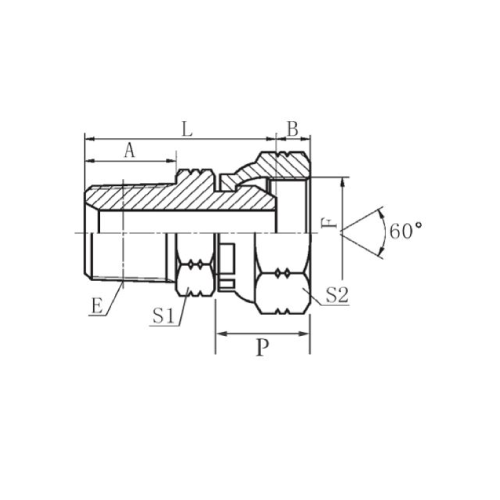

NPTF MALE x NPSM FEMALE STRAIGHT UNION
ADAPTOR 2 NPTF M X 2 NPSM FEM SW
16 sizes available · Product code AAMN
Available sizes
| Pirtek Code | Description | Dimensions | ThreadE(NPT) | ThreadF (NPSM) |
|---|---|---|---|---|
| AAMN-32-32 | ADAPTOR 2 NPTF M X 2 NPSM FEM SW | 27,5mm × 11,2mm × 65,4mm × 42mm × 65mm × 70mm | 2” - 11.5 | 2” - 11.5 |
| AAMN-24-24 | ADAPTOR 1.1/2 NPTF M X 1.1/2 NPSM FEM SW | 27,5mm × 11,2mm × 62mm × 37mm × 50mm × 55mm | 1.1/2” - 11.5 | 1.1/2” - 11.5 |
| AAMN-20-20 | ADAPTOR 1.1/4 NPTF M X 1.1/4 NPSM FEM SW | 26,5mm × 11,2mm × 60,4mm × 33mm × 46mm × 50mm | 1.1/4” - 11.5 | 1.1/4” - 11.5 |
| AAMN-16-16 | ADAPTOR 1 NPTF M X 1 NPSM FEM SW | 25,5mm × 10,5mm × 52,5mm × 32mm × 36mm × 41mm | 1” - 11.5 | 1” - 11.5 |
| AAMN-12-12 | ADAPTOR 3/4 NPTF M X 3/4 NPSM FEM SW | 19,5mm × 8,9mm × 44,5mm × 25mm × 30mm × 32mm | 3/4” - 14 | 3/4” - 14 |
| AAMN-08-12 | ADAPTOR 1/2 NPTF M X 3/4 NPSM FEM SW | 19,5mm × 8,9mm × 44,5mm × 25mm × 27mm × 32mm | 1/2” - 14 | 3/4” - 14 |
| AAMN-08-08 | ADAPTOR 1/2 NPTF M X 1/2 NPSM FEM SW | 19,5mm × 7,5mm × 41mm × 22mm × 22mm × 27mm | 1/2” - 14 | 1/2” - 14 |
| AAMN-08-06 | ADAPTOR 1/2 NPTF M X 3/8 NPSM FEM SW | 19,5mm × 6mm × 39,5mm × 19mm × 22mm × 22mm | 1/2” - 14 | 3/8” - 18 |
| AAMN-08-04 | ADAPTOR NPTF MALE X NPSM FEMALE SWIVEL | 19,5mm × 46mm × 38,5mm × 17mm × 22mm × 19mm | 1/2” - 14 | 1/4” - 18 |
| AAMN-06-08 | ADAPTOR 3/8 NPTF M X 1/2 NPSM FEM SW | 16mm × 7,5mm × 36mm × 22mm × 19mm × 27mm | 3/8” - 18 | 1/2” - 14 |
| AAMN-06-06 | ADAPTOR 3/8 NPTF M X 3/8 NPSM FEM SW | 16mm × 6mm × 33,5mm × 19mm × 19mm × 22mm | 3/8” - 18 | 3/8” - 18 |
| AAMN-06-04 | ADAPTOR 3/8 NPTF M X 1/4 NPSM FEM SW | 16mm × 4,6mm × 33mm × 17mm × 19mm × 19mm | 3/8” - 18 | 1/4” - 18 |
| AAMN-04-06 | ADAPTOR 1/4 NPTF M X 3/8 NPSM FEM SW | 15mm × 6mm × 32,5mm × 19mm × 17mm × 22mm | 1/4” - 18 | 3/8” - 18 |
| AAMN-04-04 | ADAPTOR 1/4 NPTF M X 1/4 NPSM FEM SW | 15mm × 4,6mm × 31mm × 17mm × 17mm × 19mm | 1/4” - 18 | 1/4” - 18 |
| AAMN-02-04 | ADAPTOR 1/8 NPTF M X 1/4 NPSM FEM SW | 10,5mm × 4,6mm × 27mm × 17mm × 14mm × 19mm | 1/8” - 27 | 1/4” - 18 |
| AAMN-02-02 | ADAPTOR 1/8 NPTF M X 1/8 NPSM FEM SW | 10,5mm × 3,5mm × 25,5mm × 16mm × 12mm × 15mm | 1/8” - 27 | 1/8” - 27 |
