Adaptors90 Degree ElbowsIn Stock

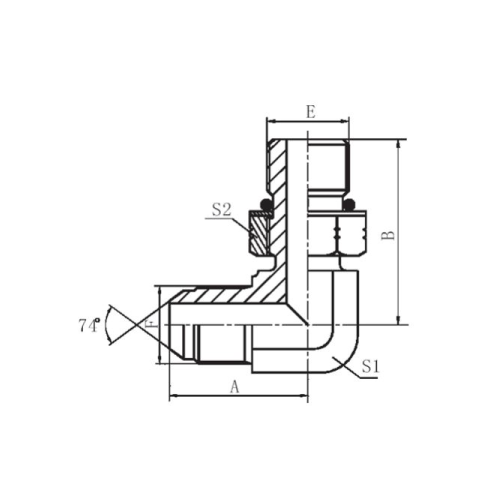

UN’O’ MALE x JIC MALE
ELB 90 1.7/8 UNO MALE X 1.7/8 JIC MALE
28 sizes available · Product code CEA
Available sizes
| Pirtek Code | Description | Dimensions | ThreadE (UN'O') | ThreadF (JIC) |
|---|---|---|---|---|
| CEA-30-30 | ELB 90 1.7/8 UNO MALE X 1.7/8 JIC MALE | 62,5mm × 63mm × 48mm × 55mm | 1.7/8” - 12 | 1.7/8” - 12 |
| CEA-26-26 | ELB 90 1.5/8 UNO MALE X 1.5/8 JIC MALE | 55,3mm × 59mm × 41mm × 50mm | 1.5/8” - 12 | 1.5/8” - 12 |
| CEA-26-21 | ELB 90 1.5/8 UNO MALE X 1.5/16 JIC MALE | 53,8mm × 59mm × 41mm × 50mm | 1.5/8” - 12 | 1.5/16” - 12 |
| CEA-21-26 | ELB 90 1.5/16 UNO MALE X 1.5/8 JIC MALE | 55,5mm × 59,5mm × 41mm × 41mm | 1.5/16” - 12 | 1.5/8” - 12 |
| CEA-21-21 | ELB 90 1.5/16 UNO MALE X 1.5/16 JIC MALE | 48,8mm × 54,5mm × 33mm × 41mm | 1.5/16” - 12 | 1.5/16” - 12 |
| CEA-21-17 | ELB 90 1.5/16 UNO MALE X 1.1/16 JIC MALE | 47,8mm × 54,5mm × 33mm × 41mm | 1.5/16” - 12 | 1.1/16” - 12 |
| CEA-19-19 | ELBOW 90` UNO MALE X JIC MALE | 47,5mm × 53mm × 30mm × 36mm | 1.3/16” - 12 | 1.3/16” - 12 |
| CEA-17-21 | ELB 90 1.1/16 UNO MALE X 1.5/16 JIC MALE | 48,8mm × 54,5mm × 33mm × 32mm | 1.1/16” - 12 | 1.5/16” - 12 |
| CEA-17-19 | ELBOW 90` UNO MALE X JIC MALE | — | 1.1/16” - 12 | 1.3/16” - 12 |
| CEA-17-17 | ELB 90 1.1/16 UNO MALE X 1.1/16 JIC MALE | 44,2mm × 51mm × 27mm × 32mm | 1.1/16” - 12 | 1.1/16” - 12 |
| CEA-17-14 | ELB 90 1.1/16 UNO MALE X 7/8 JIC MALE | 41mm × 51mm × 27mm × 32mm | 1.1/16” - 12 | 7/8” - 14 |
| CEA-17-12 | ELB 90 1.1/16 UNO MALE X 3/4 JIC MALE | 37,9mm × 51mm × 27mm × 32mm | 1.1/16” - 12 | 3/4” - 16 |
| CEA-14-17 | ELB 90 7/8 UNO MALE X 1.1/16 JIC MALE | 44,2mm × 47mm × 27mm × 27mm | 7/8” - 14 | 1.1/16” - 12 |
| CEA-14-14 | ELB 90 7/8 UNO MALE X 7/8 JIC MALE | 37,8mm × 44mm × 22mm × 27mm | 7/8” - 14 | 7/8” - 14 |
| CEA-14-12 | ELB 90 7/8 UNO MALE X 3/4 JIC MALE | 34,8mm × 44mm × 22mm × 27mm | 7/8” - 14 | 3/4” - 16 |
| CEA-14-09 | ELB 90 7/8 UNO MALE X 9/16 JIC MALE | 32mm × 44mm × 22mm × 27mm | 7/8” - 14 | 9/16” - 18 |
| CEA-12-17 | ELB 90 3/4 UNO MALE X 1.1/16 JIC MALE | 45mm × 44mm × 27mm × 24mm | 3/4” - 16 | 1.1/16” - 12 |
| CEA-12-14 | ELB 90 3/4 UNO MALE X 7/8 JIC MALE | 38mm × 40mm × 22mm × 27mm | 3/4” - 16 | 7/8” - 14 |
| CEA-12-12 | ELB 90 3/4 UNO MALE X 3/4 JIC MALE | 33mm × 36,8mm × 19mm × 24mm | 3/4” - 16 | 3/4” - 16 |
| CEA-12-09 | ELB 90 3/4 UNO MALE X 9/16 JIC MALE | 30mm × 36,8mm × 19mm × 24mm | 3/4” - 16 | 9/16” - 18 |
| CEA-09-12 | ELB 90 9/16 UNO MALE X 3/4 JIC MALE | 33mm × 33,5mm × 19mm × 19mm | 9/16” - 18 | 3/4” - 16 |
| CEA-09-10 | ELB 90 9/16 UNO MALE X 5/8 JIC MALE | — | 9/16” - 18 | 5/8” - 18 † |
| CEA-09-09 | ELB 90 9/16 UNO MALE X 9/16 JIC MALE | 26,9mm × 31,8mm × 14mm × 19mm | 9/16” - 18 | 9/16” - 18 |
| CEA-09-07 | ELB 90 9/16 UNO MALE X 7/16 JIC MALE | 26,6mm × 31,8mm × 14mm × 19mm | 9/16” - 18 | 7/16” - 20 |
| CEA-08-09 | ELB 90 1/2 UNO MALE X 9/16 JIC MALE | 26,9mm × 29,9mm × 14mm × 17mm | 1/2” - 20 | 9/16” - 18 |
| CEA-08-08 | ELB 90 1/2 UNO MALE X 1/2 JIC MALE | 26,6mm × 29mm × 14mm × 17mm | 1/2” - 20 | 1/2” - 20 |
| CEA-07-09 | ELB 90 7/16 UNO MALE X 9/16 JIC MALE | 26,9mm × 30mm × 14mm × 17mm | 7/16” - 20 | 9/16” - 18 |
| CEA-07-07 | ELB 90 7/16 UNO MALE X 7/16 JIC MALE | 24,5mm × 27,2mm × 11mm × 17mm | 7/16” - 20 | 7/16” - 20 |
