Adaptors90 Degree ElbowsIn Stock
NPT MALE x NPSM FEMALE
ELB 90 2 NPTF M X 2 NPSM FEM SW
10 sizes available · Product code CVDN
Available sizes

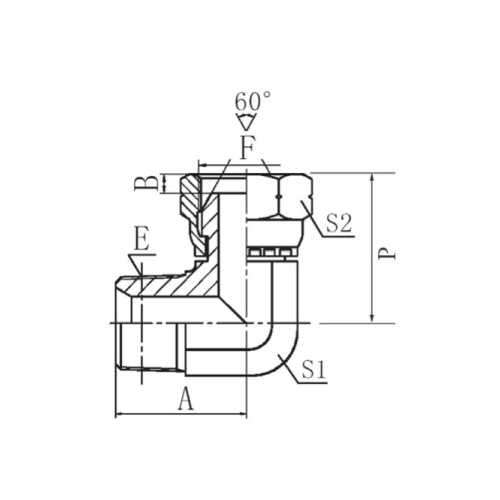

| Pirtek Code | Description | Dimensions | ThreadE(NPT) | ThreadF (NPSM) |
|---|---|---|---|---|
| CVDN-32-32 | ELB 90 2 NPTF M X 2 NPSM FEM SW | 73,5mm × 11,2mm × 87mm × 63mm × 70mm | 2” - 11.5 | 2” - 11.5 |
| CVDN-24-24 | ELBOW 90` NPTF MALE X NPSM FEMALE | 59mm × 11,2mm × 72mm × 48mm × 55mm | 1.1/2” - 11.5 | 1.1/2” - 11.5 |
| CVDN-20-20 | ELB 90 1.1/4 NPTF M X 1.1/4 NPSM FEM SW | 54,5mm × 11,2mm × 62mm × 41mm × 50mm | 1.1/4” - 11.5 | 1.1/4” - 11.5 |
| CVDN-16-16 | ELB 90 1 NPTF M X 1 NPSM FEM SW | 50mm × 10,5mm × 59mm × 33mm × 41mm | 1” - 11.5 | 1” - 11.5 |
| CVDN-12-12 | ELB 90 3/4 NPTF M X 3/4 NPSM FEM SW | 43,5mm × 8,9mm × 50mm × 27mm × 32mm | 3/4” - 14 | 3/4” - 14 |
| CVDN-08-08 | ELB 90 1/2 NPTF M X 1/2 NPSM FEM SW | 37,3mm × 7,5mm × 42mm × 22mm × 27mm | 1/2” - 14 | 1/2” - 14 |
| CVDN-06-08 | ELBOW 90` NPTF MALE X NPSM FEMALE | 31mm × 7,5mm × 36mm × 19mm × 27mm | 3/8” - 18 | 1/2” - 14 |
| CVDN-06-06 | ELB 90 3/8 NPTF M X 3/8 NPSM FEM SW | 31mm × 6mm × 36mm × 19mm × 22mm | 3/8” - 18 | 3/8” - 18 |
| CVDN-04-04 | ELB 90 1/4 NPTF M X 1/4 NPSM FEM SW | 25,5mm × 4,6mm × 33mm × 14mm × 19mm | 1/4” - 18 | 1/4” - 18 |
| CVDN-02-02 | ELB 90 1/8 NPTF M X 1/8 NPSM FEM SW | 21mm × 3,5mm × 30mm × 11mm × 15mm | 1/8” - 27 | 1/8” - 27 |
