Adaptors90 Degree ElbowsIn Stock
JIS METRIC MALE x JIS METRIC FEMALE
ELB 90 JIS M30 M X JIS M30 FEM SW
7 sizes available · Product code KAB
Available sizes

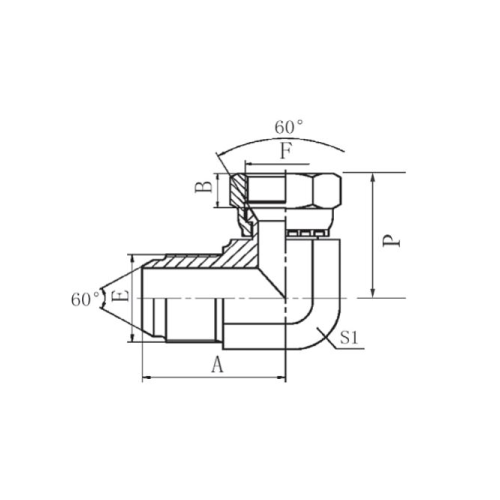

| Pirtek Code | Description | Dimensions | ThreadE (JIS Met) | ThreadF (JIS Met) |
|---|---|---|---|---|
| KAB-30-30 | ELB 90 JIS M30 M X JIS M30 FEM SW | 48mm × 18,3mm × 36mm × 54mm × 30mm | M30 - 1.5 | M30 - 1.5 |
| KAB-30-24 | ELBOW 90` JIS MALE X JIS FEMALE SWIVEL | 47,5mm × 15mm × 30mm × 51mm × 30mm | M30 - 1.5 | M24 - 1.5 |
| KAB-24-24 | ELB 90 JIS M24 M X JIS M24 FEM SW | 41,2mm × 15mm × 30mm × 44,5mm × 24mm | M24 - 1.5 | M24 - 1.5 |
| KAB-22-22 | ELB 90 JIS M22 M X JIS M22 FEM SW | 38mm × 14mm × 27mm × 42mm × 22mm | M22 - 1.5 | M22 - 1.5 |
| KAB-18-18 | ELB 90 JIS M18 M X JIS M18 FEM SW | 33,8mm × 11,5mm × 24mm × 37mm × 19mm | M18 - 1.5 | M18 - 1.5 |
| KAB-16-16 | ELB 90 JIS M16 M X JIS M16 FEM SW | 31,5mm × 10mm × 22mm × 35mm × 16mm | M16 - 1.5 | M16 - 1.5 |
| KAB-14-14 | ELB 90 JIS M14 M X JIS M14 FEM SW | 28,5mm × 10,5mm × 19mm × 32mm × 14mm | M14 - 1.5 | M14 - 1.5 |
