Adaptors90 Degree ElbowsIn Stock

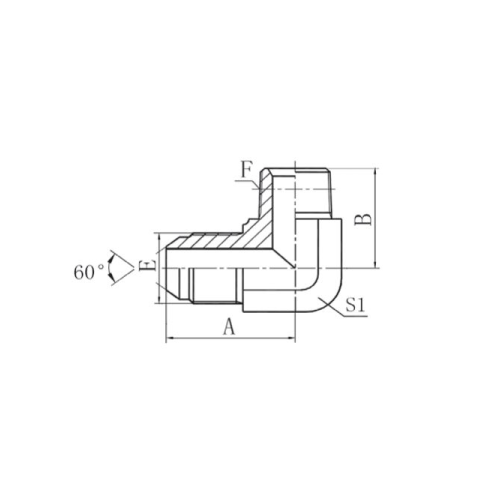

JIS METRIC MALE x BSPT MALE
ELBOW 90`JIS MET MALE/BSPT MALE
11 sizes available · Product code KVA
Available sizes
| Pirtek Code | Description | Dimensions | ThreadE (JIS Met) | ThreadF (BSPT) |
|---|---|---|---|---|
| KVA-30-12 | ELBOW 90`JIS MET MALE/BSPT MALE | 48mm × 45,3mm × 30mm | M30 - 1.5 | 3/4” - 14 |
| KVA-24-12 | ELBOW 90`JIS MET MALE/BSPT MALE | 43mm × 43,5mm × 27mm | M24 - 1.5 | 3/4” - 14 |
| KVA-24-08 | ELBOW 90`JIS MET MALE/BSPT MALE | 43,5mm × 39,5mm × 27mm | M24 - 1.5 | 1/2" - 14 |
| KVA-22-08 | ELBOW 90`JIS MET MALE/BSPT MALE | 38mm × 36mm × 22mm | M22 - 1.5 | 1/2" - 14 |
| KVA-22-06 | ELBOW 90`JIS MET MALE/BSPT MALE | 38mm × 32,5mm × 22mm | M22 - 1.5 | 3/8" - 19 |
| KVA-20-06 | ELBOW 90`JIS MET MALE/BSPT MALE | 36mm × 30,5mm × 19mm | M20 - 1.5 | 3/8" - 19 |
| KVA-18-06 | ELBOW 90`JIS MET MALE/BSPT MALE | 33,8mm × 29,5mm × 19mm | M18 - 1.5 | 3/8" - 19 |
| KVA-16-06 | ELBOW 90`JIS MET MALE/BSPT MALE | 31,5mm × 28,5mm × 16mm | M16 - 1.5 | 3/8" - 19 |
| KVA-14-06 | ELBOW 90`JIS MET MALE/BSPT MALE | 31mm × 28,5mm × 16mm | M14 - 1.5 | 3/8" - 19 |
| KVA-14-04 | ELBOW 90`JIS MET MALE/BSPT MALE | 29mm × 25,5mm × 14mm | M14 - 1.5 | 1/4" - 19 |
| KVA-14-02 | ELBOW 90`JIS MET MALE/BSPT MALE | 28,5mm × 22mm × 14mm | M14 - 1.5 | 1/8" - 28 |
