Adaptors90 Degree ElbowsIn Stock
BSPT MALE x JIC MALE
ELB 90 2 BSPT MALE X 2.1/2 JIC MALE
35 sizes available · Product code CVA
Available sizes

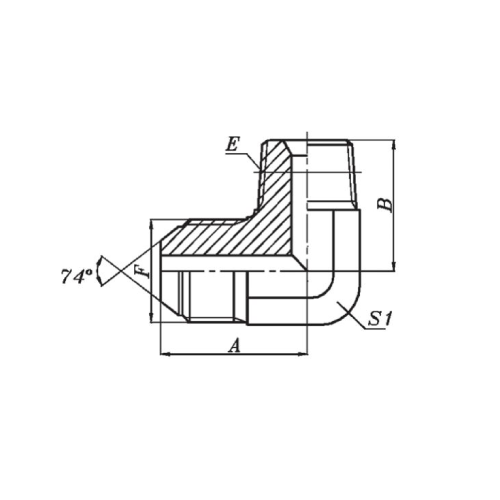

| Pirtek Code | Description | Dimensions | ThreadE (BSPT) | ThreadF (JIC) |
|---|---|---|---|---|
| CVA-32-40 | ELB 90 2 BSPT MALE X 2.1/2 JIC MALE | 75,4mm × 67mm × 48mm | 2” - 11 | 2.1/2” - 12 |
| CVA-24-30 | ELB 90 1.1/2 BSPT MALE X 1.7/8 JIC MALE | 62,5mm × 62,5mm | 1.1/2” - 11 | 1.7/8” - 12 |
| CVA-20-30 | ELB 90 1.1/4 BSPT MALE X 1.7/8 JIC MALE | 41mm | 1.1/4” - 11 | 1.7/8” - 12 |
| CVA-20-26 | ELB 90 1.1/4 BSPT MALE X 1.5/8 JIC MALE | 55,5mm × 56,5mm × 41mm | 1.1/4” - 11 | 1.5/8” - 12 |
| CVA-20-21 | ELB 90 1.1/4 BSPT MALE X 1.5/16 JIC MALE | 54mm × 56,5mm × 41mm | 1.1/4” - 11 | 1.5/16” - 12 |
| CVA-16-26 | ELB 90 1 BSPT MALE X 1.5/8 JIC MALE | 55,5mm × 56,5mm × 33mm | 1” - 11 | 1.5/8” - 12 |
| CVA-16-21 | ELB 90 1 BSPT MALE X 1.5/16 JIC MALE | 49mm × 50mm × 33mm | 1” - 11 | 1.5/16” - 12 |
| CVA-16-17 | ELB 90 1 BSPT MALE X 1.1/16 JIC MALE | 47,8mm × 50mm × 33mm | 1” - 11 | 1.1/16” - 12 |
| CVA-16-14 | ELB 90 1 BSPT MALE X 7/8 JIC MALE | 46mm × 50mm × 33mm | 1” - 11 | 7/8” - 14 |
| CVA-16-12 | ELB 90 1 BSPT MALE X 3/4 JIC MALE | 41,5mm × 50mm × 33mm | 1” - 11 | 3/4” - 16 |
| CVA-12-21 | ELB 90 3/4 BSPT MALE X 1.5/16 JIC MALE | 49mm × 47,5mm | 3/4” - 14 | 1.5/16” - 12 |
| CVA-12-19 | ELBOW 90` BSPT MALE X JIC MALE | 27mm | 3/4” - 14 | 1.3/16” - 12 |
| CVA-12-17 | ELB 90 3/4 BSPT MALE X 1.1/16 JIC MALE | 44,2mm × 43,5mm × 27mm | 3/4” - 14 | 1.1/16” - 12 |
| CVA-12-14 | ELB 90 3/4 BSPT MALE X 7/8 JIC MALE | 41mm × 43,5mm × 27mm | 3/4” - 14 | 7/8” - 14 |
| CVA-12-12 | ELB 90 3/4 BSPT MALE X 3/4 JIC MALE | 37,9mm × 43,5mm × 27mm | 3/4” - 14 | 3/4” - 16 |
| CVA-08-17 | ELB 90 1/2 BSPT MALE X 1.1/16 JIC MALE | 44,2mm × 40mm × 22mm | 1/2” - 14 | 1.1/16” - 12 |
| CVA-08-14 | ELB 90 1/2 BSPT MALE X 7/8 JIC MALE | 37,8mm × 36mm × 22mm | 1/2” - 14 | 7/8” - 14 |
| CVA-08-12 | ELB 90 1/2 BSPT MALE X 3/4 JIC MALE | 34,8mm × 36mm | 1/2” - 14 | 3/4” - 16 |
| CVA-08-10 | ELBOW 90` BSPT MALE X JIC MALE | 22mm | 1/2” - 14 | 5/8” - 18 † |
| CVA-08-09 | ELB 90 1/2 BSPT MALE X 9/16 JIC MALE | 32mm × 36mm × 22mm | 1/2” - 14 | 9/16” - 18 |
| CVA-08-07 | ELB 90 1/2 BSPT MALE X 7/16 JIC MALE | 31,5mm × 36mm × 22mm | 1/2” - 14 | 7/16” - 20 |
| CVA-06-14 | ELB 90 3/8 BSPT MALE X 7/8 JIC MALE | 38mm × 32mm × 19mm | 3/8” - 19 | 7/8” - 14 |
| CVA-06-12 | ELB 90 3/8 BSPT MALE X 3/4 JIC MALE | 32mm × 30,5mm | 3/8” - 19 | 3/4” - 16 |
| CVA-06-10 | ELB 90 3/8 BSPT MALE X 5/8 SAE MALE | 16mm | 3/8” - 19 | 5/8” - 18 † |
| CVA-06-09 | ELB 90 3/8 BSPT MALE X 9/16 JIC MALE | 28,5mm × 28,5mm × 16mm | 3/8” - 19 | 9/16” - 18 |
| CVA-06-08 | ELB 90 3/8 BSPT MALE X 1/2 JIC MALE | 27,5mm × 28mm × 16mm | 3/8” - 19 | 1/2” - 20 |
| CVA-06-07 | ELB 90 3/8 BSPT MALE X 7/16 JIC MALE | 27,5mm × 28mm × 19mm | 3/8” - 19 | 7/16” - 20 |
| CVA-04-12 | ELB 90 1/4 BSPT MALE X 3/4 JIC MALE | 32mm × 28mm | 1/4” - 19 | 3/4” - 16 |
| CVA-04-10 | ELB 90 1/4 BSPT MALE X 5/8 SAE MALE | 14mm | 1/4” - 19 | 5/8” - 18 † |
| CVA-04-09 | ELB 90 1/4 BSPT MALE X 9/16 JIC MALE | 26,9mm × 25,5mm × 14mm | 1/4” - 19 | 9/16” - 18 |
| CVA-04-08 | ELB 90 1/4 BSPT MALE X 1/2 JIC MALE | 26,6mm × 25,5mm × 14mm | 1/4” - 19 | 1/2” - 20 |
| CVA-04-07 | ELB 90 1/4 BSPT MALE X 7/16 JIC MALE | 26,6mm × 25,5mm × 14mm | 1/4” - 19 | 7/16” - 20 |
| CVA-02-09 | ELB 90 1/8 BSPT MALE X 9/16 JIC MALE | 26,9mm × 23,5mm × 14mm | 1/8” - 28 | 9/16” - 18 |
| CVA-02-08 | ELB 90 1/8 BSPT MALE X 1/2 JIC MALE | 26,6mm × 23,5mm × 11mm | 1/8” - 28 | 1/2” - 20 |
| CVA-02-07 | ELB 90 1/8 BSPT MALE X 7/16 JIC MALE | 24,5mm × 21mm | 1/8” - 28 | 7/16” - 20 |
