Adaptors90 Degree ElbowsIn Stock
BSPT MALE x BSPP FEMALE
ELB 90 1.1/2 BSPT M X 1.1/2 BSPP FEM SW
11 sizes available · Product code CVD
Available sizes

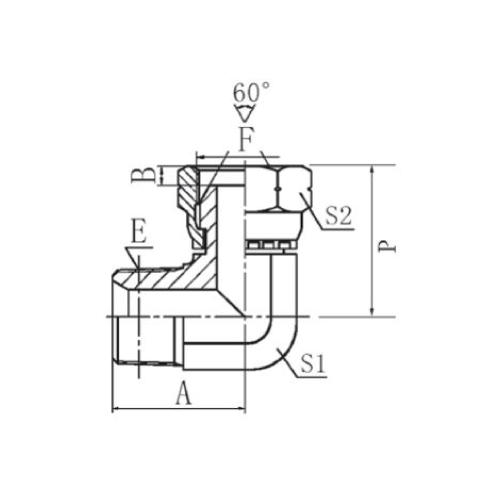

| Pirtek Code | Description | Dimensions | ThreadE (BSPT) | ThreadF (BSPP) |
|---|---|---|---|---|
| CVD-24-24 | ELB 90 1.1/2 BSPT M X 1.1/2 BSPP FEM SW | 62,5mm × 13mm × 72mm × 48mm × 55mm | 1.1/2” - 11 | 1.1/2” - 11 |
| CVD-20-20 | ELB 90 1.1/4 BSPT M X 1.1/4 BSPP FEM SW | 58mm × 11mm × 62mm × 41mm × 50mm | 1.1/4” - 11 | 1.1/4” - 11 |
| CVD-16-16 | ELB 90 1 BSPT M X 1 BSPP FEM SW | 50mm × 11,7mm × 59mm × 33mm × 41mm | 1” - 11 | 1” - 11 |
| CVD-12-12 | ELB 90 3/4 BSPT M X 3/4 BSPP FEM SW | 43,5mm × 10,9mm × 50mm × 27mm × 32mm | 3/4” - 14 | 3/4” - 14 |
| CVD-08-08 | ELB 90 1/2 BSPT M X 1/2 BSPP FEM SW | 36mm × 7,5mm × 42mm × 22mm × 27mm | 1/2” - 14 | 1/2" - 14 |
| CVD-08-06 | ELB 90 1/2 BSPT M X 3/8 BSPP FEM SW | 36mm × 6,3mm × 42mm × 22mm × 22mm | 1/2” - 14 | 3/8” - 19 |
| CVD-06-08 | ELB 90 3/8 BSPT M X 1/2 BSPP FEM SW | 30,5mm × 7,5mm × 36mm × 19mm × 27mm | 3/8” - 19 | 1/2" - 14 |
| CVD-06-06 | ELB 90 3/8 BSPT M X 3/8 BSPP FEM SW | 28,5mm × 6,3mm × 36mm × 16mm × 22mm | 3/8” - 19 | 3/8” - 19 |
| CVD-06-04 | ELB 90 3/8 BSPT M X 1/4 BSPP FEM SW | 28,5mm × 5,5mm × 33mm × 16mm × 19mm | 3/8” - 19 | 1/4” - 19 |
| CVD-04-04 | ELB 90 1/4 BSPT M X 1/4 BSPP FEM SW | 25,5mm × 5,5mm × 33mm × 14mm × 19mm | 1/4” - 19 | 1/4” - 19 |
| CVD-02-02 | ELB 90 1/8 BSPT M X 1/8 BSPP FEM SW | 21mm × 5,5mm × 30mm × 11mm × 14mm | 1/8” - 28 | 1/8” - 28 |
