Adaptors90 Degree ElbowsIn Stock

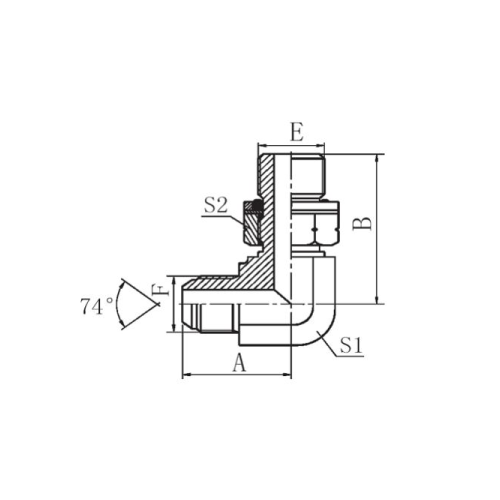

BSPP MALE x JIC MALE
ELB 90 1.1/2 BSPP MALE X 1.7/8 JIC MALE
22 sizes available · Product code CFA
Available sizes
| Pirtek Code | Description | Dimensions | ThreadE (BSPP) | ThreadF (JIC) |
|---|---|---|---|---|
| CFA-24-30 | ELB 90 1.1/2 BSPP MALE X 1.7/8 JIC MALE | 62,5mm × 63mm × 48mm × 55mm | 1.1/2” - 11 | 1.7/8” - 12 |
| CFA-20-26 | ELB 90 1.1/4 BSPP MALE X 1.5/8 JIC MALE | 55,5mm × 58mm × 41mm × 50mm | 1.1/4” - 11 | 1.5/8” - 12 |
| CFA-20-21 | ELB 90 1.1/4 BSPP MALE X 1.5/16 JIC MALE | 53,8mm × 58mm × 41mm × 50mm | 1.1/4” - 11 | 1.5/16” - 12 |
| CFA-16-26 | ELB 90 1 BSPP MALE X 1.5/8 JIC MALE | 55,5mm × 58mm × 41mm × 41mm | 1” - 11 | 1.5/8” - 12 |
| CFA-16-21 | ELB 90 1 BSPP MALE X 1.5/16 JIC MALE | 49mm × 53mm × 33mm × 41mm | 1” - 11 | 1.5/16” - 12 |
| CFA-16-17 | ELB 90 1 BSPP MALE X 1.1/16 JIC MALE | 48mm × 53mm × 33mm × 41mm | 1” - 11 | 1.1/16” - 12 |
| CFA-12-21 | ELB 90 3/4 BSPP MALE X 1.5/16 JIC MALE | 49mm × 53mm × 33mm × 32mm | 3/4” - 14 | 1.5/16” - 12 |
| CFA-12-17 | ELB 90 3/4 BSPP MALE X 1.1/16 JIC MALE | 44,2mm × 49,3mm × 27mm × 32mm | 3/4” - 14 | 1.1/16” - 12 |
| CFA-12-14 | ELB 90 3/4 BSPP MALE X 7/8 JIC MALE | 41mm × 49,3mm × 27mm × 32mm | 3/4” - 14 | 7/8” - 14 |
| CFA-12-12 | ELB 90 3/4 BSPP MALE X 3/4 JIC MALE | 37,9mm × 49,3mm × 27mm × 32mm | 3/4” - 14 | 3/4” - 16 |
| CFA-08-17 | ELB 90 1/2 BSPP MALE X 1.1/16 JIC MALE | 44,2mm × 46,5mm × 27mm × 27mm | 1/2” - 14 | 1.1/16” - 12 |
| CFA-08-14 | ELB 90 1/2 BSPP MALE X 7/8 JIC MALE | 37,8mm × 43,2mm × 22mm × 27mm | 1/2” - 14 | 7/8” - 14 |
| CFA-08-12 | ELB 90 1/2 BSPP MALE X 3/4 JIC MALE | 34,8mm × 43,2mm × 22mm × 27mm | 1/2” - 14 | 3/4” - 16 |
| CFA-08-09 | ELB 90 1/2 BSPP MALE X 9/16 JIC MALE | 32,5mm × 43,2mm × 22mm × 27mm | 1/2” - 14 | 9/16” - 18 |
| CFA-06-14 | ELB 90 3/8 BSPP MALE X 7/8 JIC MALE | — | 3/8” - 19 | 7/8” - 14 |
| CFA-06-12 | ELB 90 3/8 BSPP MALE X 3/4 JIC MALE | 32mm × 36,8mm × 19mm × 22mm | 3/8” - 19 | 3/4” - 16 |
| CFA-06-09 | ELB 90 3/8 BSPP MALE X 9/16 JIC MALE | 28,5mm × 35,8mm × 16mm × 22mm | 3/8” - 19 | 9/16” - 18 |
| CFA-06-07 | ELB 90 3/8 BSPP MALE X 7/16 JIC MALE | 28,5mm × 36,5mm | 3/8” - 19 | 7/16” - 20 |
| CFA-04-12 | ELB 90 1/4 BSPP MALE X 3/4 JIC MALE | 32mm × 31,3mm × 19mm × 19mm | 1/4” - 19 | 3/4” - 16 |
| CFA-04-09 | ELB 90 1/4 BSPP MALE X 9/16 JIC MALE | 26,9mm × 31,3mm × 14mm × 19mm | 1/4” - 19 | 9/16” - 18 |
| CFA-04-07 | ELB 90 1/4 BSPP MALE X 7/16 JIC MALE | 26,6mm × 31,3mm × 14mm × 19mm | 1/4” - 19 | 7/16” - 20 |
| CFA-02-07 | ELB 90 1/8 BSPP MALE X 7/16 JIC MALE | 24,5mm × 26,2mm × 11mm × 14mm | 1/8” - 28 | 7/16” - 20 |
