Adaptors45 Degree ElbowsIn Stock

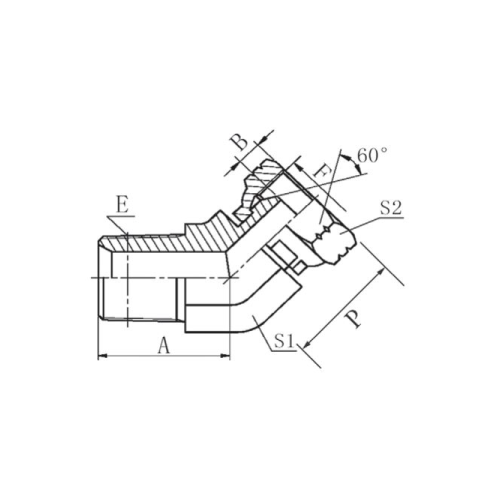

NPT MALE x NPSM FEMALE
ELB 45 2 NPTF M X 2 NPSM FEM SW
9 sizes available · Product code CJDN
Available sizes
| Pirtek Code | Description | Dimensions | ThreadE(NPT) | ThreadF (NPSM) |
|---|---|---|---|---|
| CJDN-32-32 | ELB 45 2 NPTF M X 2 NPSM FEM SW | 52,5mm × 11,2mm × 60mm × 63mm × 70mm | 2” - 11.5 | 2” - 11.5 |
| CJDN-24-24 | ELB 45 1.1/2 NPTF M X 1.1/2 NPSM FEM SW | 45mm × 11,2mm × 56mm × 48mm × 55mm | 1.1/2” - 11.5 | 1.1/2” - 11.5 |
| CJDN-20-20 | ELB 45 1.1/4 NPTF M X 1.1/4 NPSM FEM SW | 42,5mm × 11,2mm × 48mm × 41mm × 50mm | 1.1/4” - 11.5 | 1.1/4” - 11.5 |
| CJDN-16-16 | ELB 45 1 NPTF M X 1 NPSM FEM SW | 39mm × 10,5mm × 46mm × 33mm × 41mm | 1” - 11.5 | 1” - 11.5 |
| CJDN-12-12 | ELB 45 3/4 NPTF M X 3/4 NPSM FEM SW | 35mm × 8,9mm × 41mm × 27mm × 32mm | 3/4” - 14 | 3/4” - 14 |
| CJDN-08-08 | ELB 45 1/2 NPTF M X 1/2 NPSM FEM SW | 29,5mm × 7,5mm × 33mm × 22mm × 27mm | 1/2” - 14 | 1/2” - 14 |
| CJDN-06-06 | ELB 45 3/8 NPTF M X 3/8 NPSM FEM SW | 24mm × 6mm × 30mm × 19mm × 22mm | 3/8” - 18 | 3/8” - 18 |
| CJDN-04-04 | ELB 45 1/4 NPTF M X 1/4 NPSM FEM SW | 21mm × 4,6mm × 27mm × 14mm × 19mm | 1/4” - 18 | 1/4” - 18 |
| CJDN-02-02 | ELB 45 1/8 NPTF M X 1/8 NPSM FEM SW | 17mm × 3,5mm × 25mm × 11mm × 15mm | 1/8” - 27 | 1/8” - 27 |
