Adaptors45 Degree ElbowsIn Stock

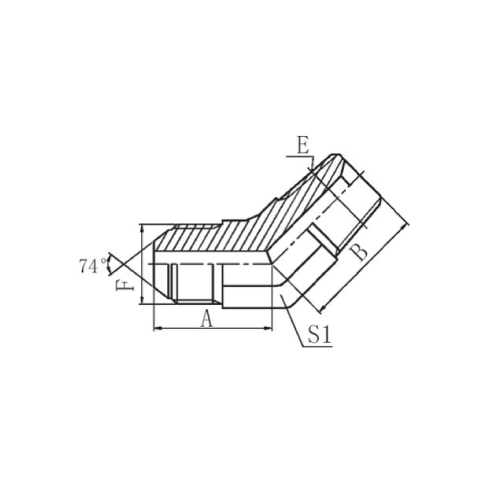

NPT MALE x JIC MALE
ELB 45 1.1/4 NPTF MALE X 1.5/8 JIC MALE
19 sizes available · Product code CJAN
Available sizes
| Pirtek Code | Description | Dimensions | ThreadE(NPT) | ThreadF (JIC) |
|---|---|---|---|---|
| CJAN-20-26 | ELB 45 1.1/4 NPTF MALE X 1.5/8 JIC MALE | 43mm × 42mm × 41mm | 1.1/4” - 11.5 | 1.5/8” - 12 |
| CJAN-16-21 | ELB 45 1 NPTF MALE X 1.5/16 JIC MALE | 38,5mm × 39mm × 33mm | 1” - 11.5 | 1.5/16” - 12 |
| CJAN-16-17 | ELB 45 1 NPTF MALE X 1.1/16 JIC MALE | — | 1” - 11.5 | 1.1/16” - 12 |
| CJAN-12-17 | ELB 45 3/4 NPTF MALE X 1.1/16 JIC MALE | 35,5mm × 35mm × 27mm | 3/4” - 14 | 1.1/16” - 12 |
| CJAN-12-14 | ELBOW 45` NPTF MALE X JIC MALE | 32mm × 35mm × 27mm | 3/4” - 14 | 7/8” - 14 |
| CJAN-12-12 | ELB 45 3/4 NPTF MALE X 3/4 JIC MALE | 29mm × 35mm × 27mm | 3/4” - 14 | 3/4” - 16 |
| CJAN-08-14 | ELB 45 1/2 NPTF MALE X 7/8 JIC MALE | 31mm × 29,5mm × 22mm | 1/2” - 14 | 7/8” - 14 |
| CJAN-08-12 | ELB 45 1/2 NPTF MALE X 3/4 JIC MALE | 28mm × 29,5mm × 22mm | 1/2” - 14 | 3/4” - 16 |
| CJAN-08-09 | ELB 45 1/2 NPTF MALE X 9/16 JIC MALE | 25mm × 29,5mm × 22mm | 1/2” - 14 | 9/16” - 18 |
| CJAN-06-14 | ELB 45 3/8 NPTF MALE X 7/8 JIC MALE | 31mm × 26mm × 22mm | 3/8” - 18 | 7/8” - 14 |
| CJAN-06-12 | ELB 45 3/8 NPTF MALE X 3/4 JIC MALE | 26,8mm × 24mm × 19mm | 3/8” - 18 | 3/4” - 16 |
| CJAN-06-09 | ELB 45 3/8 NPTF MALE X 9/16 JIC MALE | 24mm × 24mm × 19mm | 3/8” - 18 | 9/16” - 18 |
| CJAN-04-12 | ELB 45 1/4 NPTF MALE X 3/4 JIC MALE | 26,8mm × 22mm × 19mm | 1/4” - 18 | 3/4” - 16 |
| CJAN-04-10 | ELBOW 45` NPTF MALE X JIC MALE | 25mm × 21mm × 16mm | 1/4” - 18 | 5/8” - 18 † |
| CJAN-04-09 | ELB 45 1/4 NPTF MALE X 9/16 JIC MALE | 22,8mm × 21mm × 14mm | 1/4” - 18 | 9/16” - 18 |
| CJAN-04-08 | ELB 45 1/4 NPTF MALE X 1/2 JIC MALE | 22,3mm × 21mm × 14mm | 1/4” - 18 | 1/2” - 20 |
| CJAN-04-07 | ELB 45 1/4 NPTF MALE X 7/16 JIC MALE | 22,3mm × 21mm × 14mm | 1/4” - 18 | 7/16” - 20 |
| CJAN-02-08 | ELBOW 45` NPTF MALE X JIC MALE | 22,3mm × 18mm × 14mm | 1/8” - 27 | 1/2” - 20 |
| CJAN-02-07 | ELB 45 1/8 NPTF MALE X 7/16 JIC MALE | 21,5mm × 17mm × 11mm | 1/8” - 27 | 7/16” - 20 |
