Adaptors90 Degree ElbowsIn Stock
NPT MALE x JIC MALE
ELB 90 2 NPTF MALE X 2.1/2 JIC MALE
28 sizes available · Product code CVAN
Available sizes

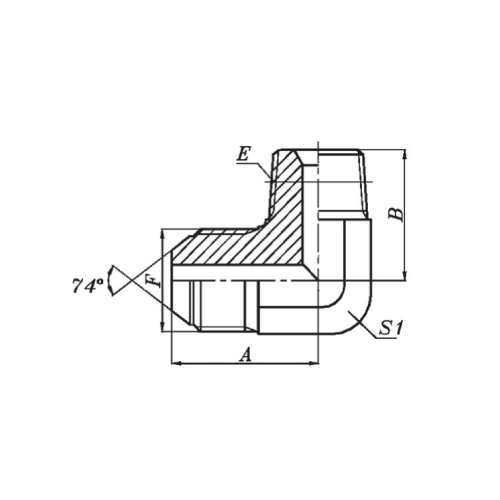

| Pirtek Code | Description | Dimensions | ThreadE(NPT) | ThreadF (JIC) |
|---|---|---|---|---|
| CVAN-32-40 | ELB 90 2 NPTF MALE X 2.1/2 JIC MALE | 75,4mm × 67,5mm × 63mm | 2” - 11.5 | 2.1/2” - 12 |
| CVAN-24-30 | ELB 90 1.1/2 NPTF MALE X 1.7/8 JIC MALE | 75,4mm × 70mm × 48mm | 1.1/2” - 11.5 | 1.7/8” - 12 |
| CVAN-20-30 | ELBOW 90` NPTF MALE X JIC MALE | 62,5mm × 63mm × 41mm | 1.1/4” - 11.5 | 1.7/8” - 12 |
| CVAN-20-26 | ELB 90 1.1/4 NPTF MALE X 1.5/8 JIC MALE | 55,5mm × 54,5mm × 41mm | 1.1/4” - 11.5 | 1.5/8” - 12 |
| CVAN-20-21 | ELB 90 1.1/4 NPTF MALE X 1.5/16 JIC MALE | 54mm × 60,5mm × 41mm | 1.1/4” - 11.5 | 1.5/16” - 12 |
| CVAN-16-21 | ELB 90 1 NPTF MALE X 1.5/16 JIC MALE | 49mm × 50mm × 33mm | 1” - 11.5 | 1.5/16” - 12 |
| CVAN-16-17 | ELB 90 1 NPTF MALE X 1.1/16 JIC MALE | 49mm × 50mm × 33mm | 1” - 11.5 | 1.1/16” - 12 |
| CVAN-12-21 | ELB 90 3/4 NPTF MALE X 1.5/16 JIC MALE | 49mm × 45,2mm × 30mm | 3/4” - 14 | 1.5/16” - 12 |
| CVAN-12-17 | ELB 90 3/4 NPTF MALE X 1.1/16 JIC MALE | 44,2mm × 44mm × 27mm | 3/4” - 14 | 1.1/16” - 12 |
| CVAN-12-14 | ELB 90 3/4 NPTF MALE X 7/8 JIC MALE | 41mm × 44mm × 27mm | 3/4” - 14 | 7/8” - 14 |
| CVAN-12-12 | ELB 90 3/4 NPTF MALE X 3/4 JIC MALE | 37,9mm × 44mm × 27mm | 3/4” - 14 | 3/4” - 16 |
| CVAN-08-17 | ELB 90 1/2 NPTF MALE X 1.1/16 JIC MALE | 44,2mm × 40mm × 22mm | 1/2” - 14 | 1.1/16” - 12 |
| CVAN-08-14 | ELB 90 1/2 NPTF MALE X 7/8 JIC MALE | 37,8mm × 37,3mm × 22mm | 1/2” - 14 | 7/8” - 14 |
| CVAN-08-12 | ELB 90 1/2 NPTF MALE X 3/4 JIC MALE | 34,8mm × 37,3mm | 1/2” - 14 | 3/4” - 16 |
| CVAN-08-09 | ELB 90 1/2 NPTF MALE X 9/16 JIC MALE | 32mm × 36,7mm × 22mm | 1/2” - 14 | 9/16” - 18 |
| CVAN-08-07 | ELB 90 1/2 NPTF MALE X 7/16 JIC MALE | 33,5mm × 37,3mm × 22mm | 1/2” - 14 | 7/16” - 20 |
| CVAN-06-14 | ELB 90 3/8 NPTF MALE X 7/8 JIC MALE | 37,8mm × 32,5mm × 19mm | 3/8” - 18 | 7/8” - 14 |
| CVAN-06-12 | ELB 90 3/8 NPTF MALE X 3/4 JIC MALE | 32mm × 31mm | 3/8” - 18 | 3/4” - 16 |
| CVAN-06-09 | ELB 90 3/8 NPTF MALE X 9/16 JIC MALE | 30mm × 31mm × 19mm | 3/8” - 18 | 9/16” - 18 |
| CVAN-06-07 | ELB 90 3/8 NPTF MALE X 7/16 JIC MALE | 29,5mm × 31mm × 19mm | 3/8” - 18 | 7/16” - 20 |
| CVAN-04-12 | ELB 90 1/4 NPTF MALE X 3/4 JIC MALE | 32mm × 28,5mm | 1/4” - 18 | 3/4” - 16 |
| CVAN-04-10 | ELB 90 1/4 NPTF MALE X 5/8 SAE MALE | 14mm | 1/4” - 18 | 5/8” - 18 † |
| CVAN-04-09 | ELB 90 1/4 NPTF MALE X 9/16 JIC MALE | 26,9mm × 25,5mm × 14mm | 1/4” - 18 | 9/16” - 18 |
| CVAN-04-08 | ELB 90 1/4 NPTF MALE X 1/2 JIC MALE | 26,6mm × 25,5mm × 14mm | 1/4” - 18 | 1/2” - 20 |
| CVAN-04-07 | ELB 90 1/4 NPTF MALE X 7/16 JIC MALE | 26,6mm × 25,5mm × 14mm | 1/4” - 18 | 7/16” - 20 |
| CVAN-02-09 | ELB 90 1/8 NPTF MALE X 9/16 JIC MALE | 26,9mm × 23,5mm × 14mm | 1/8” - 27 | 9/16” - 18 |
| CVAN-02-08 | ELB 90 1/8 NPTF MALE X 1/2 JIC MALE | 26,6mm × 23,5mm × 11mm | 1/8” - 27 | 1/2” - 20 |
| CVAN-02-07 | ELB 90 1/8 NPTF MALE X 7/16 JIC MALE | 24,5mm × 21mm × 63mm | 1/8” - 27 | 7/16” - 20 |
