Adaptors45 Degree ElbowsIn Stock
JIS METRIC MALE x JIS O-RING MALE
ELBOW 45`JIS MET M/JIS MET M PAR
6 sizes available · Product code KKA
Available sizes

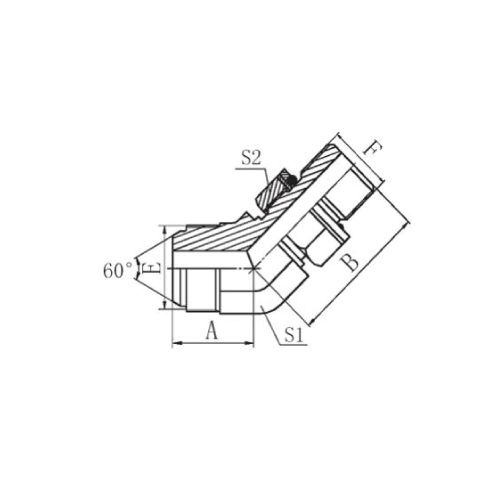

| Pirtek Code | Description | Dimensions | ThreadE (JIS Met) | ThreadF (JIS O-Ring) |
|---|---|---|---|---|
| KKA-22-20 | ELBOW 45`JIS MET M/JIS MET M PAR | 30,5mm × 33mm × 22mm × 27mm | M22 - 1.5 | M20 - 1.5 |
| KKA-20-18 | ELBOW 45`JIS MET M/JIS MET M PAR | 30mm × 31mm × 19mm × 24mm | M20 - 1.5 | M18 - 1.5 |
| KKA-18-20 | ELBOW 45`JIS MET M/JIS MET M PAR | 26mm × 32mm × 19mm × 27mm | M18 - 1.5 | M20 - 1.5 |
| KKA-18-16 | ELBOW 45`JIS MET M/JIS MET M PAR | 28mm × 30mm × 19mm × 22mm | M18 - 1.5 | M16 - 1.5 |
| KKA-16-14 | ELBOW 45`JIS MET M/JIS MET M PAR | 25mm × 28,5mm × 16mm × 19mm | M16 - 1.5 | M14 - 1.5 |
| KKA-14-12 | ELBOW 45`JIS MET M/JIS MET M PAR | 23,5mm × 28,3mm × 14mm × 17mm | M14 - 1.5 | M12 - 1.5 |
